Parma-240 project

Project description

Parma-240 project
  • Floors:3 and underground
  • Total area:240 sq. m.
  • Walls:Porotherm-38 blocks
  • Foundations:strip reinforced concrete foundation
  • Structural design: monolithic reinforced concrete frame and load-bearing walls
  • Chief project architect:Vladimir Glazkov
  • Chief Structural Designer:Valery Kozlov




External view, Parma-240 project - a home project with a flat exploited roof, panoramic windows and terracesThe project is designed for areas with a warm climate and a possible seismic activity up to and including 8 points.
Parma-240 is the house with terraces design, which are arranged on all three floors and are focused on three areas. From the hot sun terraces closed down ledges and wooden pergolas and trellis (which serve as the basis for more and vines – ivy, grape).


External view, Parma-240 project - a home project with a flat exploited roof, panoramic windows and terracesThe top terrace is arranged on the flat roof on the second floor. It is partially covered by a wooden pergola, which gives the scattered shade and bearing the vines. The same wooden elements, only vertical (trellis) installed close to the terraces of the first and second floors.

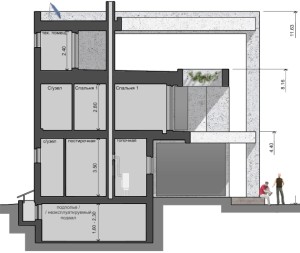

House in section, Parma-240 project - a home project with a flat exploited roof, panoramic windows and terracesAnother useful feature of the house with terraces – they close the windows from the rays of the sun was high in the summer, but was passed in winter when the sun is low. Also perform the function of shading and pergolas – the second and third floors.
The house provides technical underground in height from 1.6 to 2.27 m, which allows support for engineering services and also serves as a reserve expansion at home. In the underground down a staircase, there are the window to the pits. The height of the underground in each case determined by the depth of the carrier on a plot of soil layer.


A modern house project almost always a house with a flat roof, which device technology coincident flat roof makes it possible to use it not only for the discharge of rainwater, but also as an additional (and useful) area of the house.

Birdeye view, sun collectors on the roof, Parma-240 project - a home project with a flat exploited roof, panoramic windows and terracesploited roof, panoramic windows and terracesA flat roof home project provides a observation platform and a place to rest, and this is important. But today we have to think about and economical heating systems, alternative gas and electricity. Here, on the flat roof, you can install solar collectors, where their operation will be much easier than on a pitched roof. To do this, on the third floor provides room for technological equipment of such systems, and the systems themselves can be placed on the roof of the third floor.


Elevation, Parma-240 project - a home project with a flat exploited roof, panoramic windows and terracesParma-240 is the panoramic windows house design that occupy the walls from floor to ceiling. Without exception, all living rooms at home with their windows overlook the terrace, this is achieved by a sense of continuity of internal and external environment.
Yet it gives light filled interiors also, “enters” inside the house of its natural environment. This feeling of freedom and openness, both on the outside, in the perception of the facades and inside the house


A modern home project is not always desirable to see the predominance of glass and metal. This deprives the house of comfort, and it becomes like an office. The materials used for the house in a modern style, and it can be traditional or even archaic – it will help to create a harmonious, fresh impression. The materials used for the house in a contemporary style, and can be quite traditional and even archaic – it will help to create a harmonious, fresh impression. The project Parma-240 window bindings and racks terrace fences made of polished stainless steel and glass with panoramic windows these modern materials create an interesting mix of archaic materials – bricks and antique plaster.
External view, Parma-240 project - a home project with a flat exploited roof, panoramic windows and terracesThe house elevations have three main types of finishing:
– White plaster (with a rough, uneven surface)
– Tiles of antique brick or thermowood siding (see option 2 video.)
– Gray textured plaster with a smooth surface..
The third important component of the image of a tree. In various forms – trellises and pergolas, pillars and beams, wall paneling. Tree on the facades balances coldness metal and glass, giving a modern style home comfort. House construction in hot climates necessarily equipped with air conditioning. Outdoor units are split systems are not always adorn the facades, so here we have provided is their location, which is harmoniously integrated into the logic of the facades.


porous ceramics blocksThe exterior walls of the house – porous ceramics blocks (TM Porotherm, Keraterm, Kerameya), which solves two problems at once – heat saving and durability. These building blocks do not require additional insulation (for temperate climate conditions) and can withstand loads up to 5 floors. Durability block – marks 100 and 125, the thermal conductivity in the thickness of 44 cm – within a building norms.
The combination of the walls of porous ceramic blocks and monolithic reinforced concrete frame led to the form of the free and the plastic buildings


Parma River-stream

Parma – it is in fact not even a river, but a large stream, 92 kilometres long, that begins in the Tuscan-Emilian Apennine mountains and flows in Parma valley. It begins from the lake Lago Santo parmense and small lakes Gemio and Scuro. It flows through the Province of Parma into Parma, dividing the city in two, and then continues to the Po.
It would be very hot and dry in a sunny country, if not the set of streams and rivers flowing down from the mountains into the valley.

Parma River-stream






House Plans

План 1 этажа план 1 этажа, проект Парма-240 - проект дома с плоской эксплуатируемой кровлей, панорамными окнами и террасамиПланировка первого этажа представляет собой лофт, включающий четыре функциональных зоны: холл-прихожую, гостиную, столовую и кухню.  В отдельный отсек выделена зона служебных помещений. Панорамное окно лофта направлено на то видовое направление, которое выбрано при размещении здания.


план 2 этажа, проект Парма-240 - проект дома с плоской эксплуатируемой кровлей, панорамными окнами и террасамиПлан 2 этажа Жилые помещения второго этажа также ориентированы на видовое направление, окна служебных – в противоположном.


План 3 этажа план 3 этажа, проект Парма-240 - проект дома с плоской эксплуатируемой кровлей, панорамными окнами и террасамиТретий этаж почти полностью занят террасой, частью крытой навесом и перголой. Здесь же небольшое техническое помещение, которое предназначено для управления солнечными коллекторами.




Elevations

Фасад 1, проект Парма-240 - проект будинку з плоскою експлуатованої покрівлею, панорамними вікнами і терасамиФасад 2, проект Парма-240 - проект дома с плоской эксплуатируемой кровлей, панорамными окнами и террасамиФасад 3, проект Парма-240 - проект дома с плоской эксплуатируемой кровлей, панорамными окнами и террасамиФасад 4, проект Парма-240 - проект дома с плоской эксплуатируемой кровлей, панорамными окнами и террасамиВнешний вид 1, проект Парма-240 - проект дома с плоской эксплуатируемой кровлей, панорамными окнами и террасамиВнешний вид 2, проект Парма-240 - проект дома с плоской эксплуатируемой кровлей, панорамными окнами и террасамиВнешний вид 3, проект Парма-240 - проект дома с плоской эксплуатируемой кровлей, панорамными окнами и террасамиВнешний вид 4, проект Парма-240 - проект дома с плоской эксплуатируемой кровлей, панорамными окнами и террасами

Project video

(Рус)
Вариант с облицовкой светлым кирпичом
Вариант с облицовкой тёмным деревом
